The Growth Proficiency Chart is a dynamic scatterplot chart that provides a customizable comparison of how specific schools, classes, and students are performing based on the current Student Growth Percentile (SGP) and % Proficient (for districts and schools) or Scaled Score or Percentile Rank (for students' latest tests). Your permission group determines what information is shown in the default view and what options are available for drilling down further into the data.

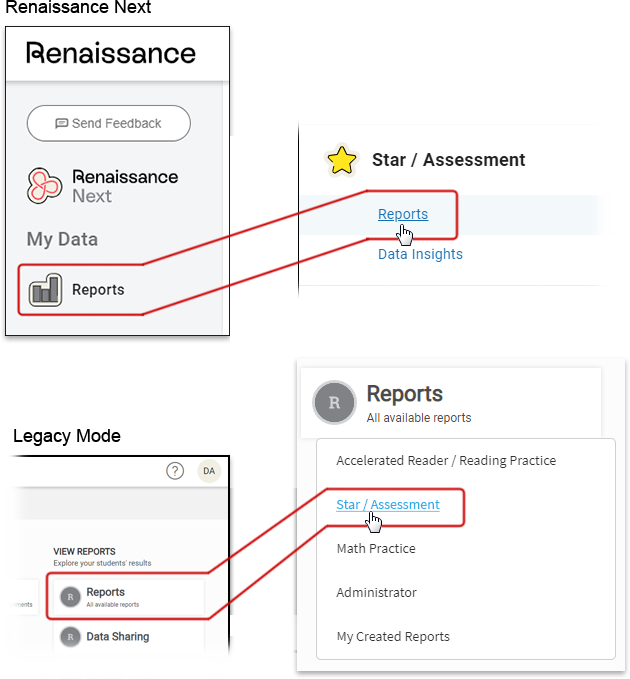

How do I get to this page?

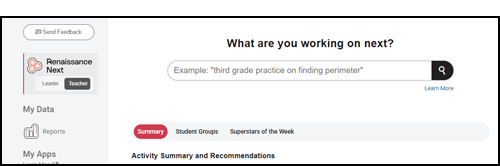

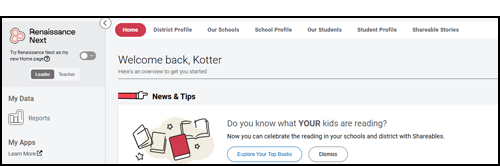

- Log in to Renaissance.

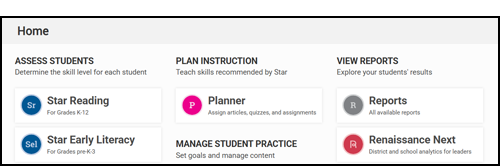

- On the Home page, select Reports; in the drop-down list, select Star / Assessment.
- On the Star / Assessment tab on the Reports page, under “Growth and Progress,” select Growth Proficiency Chart.
Who can do this with default user permissions?
District Level Administrators, District Dashboard Owners, District Staff, School Level Administrators, School Staff, Teachers

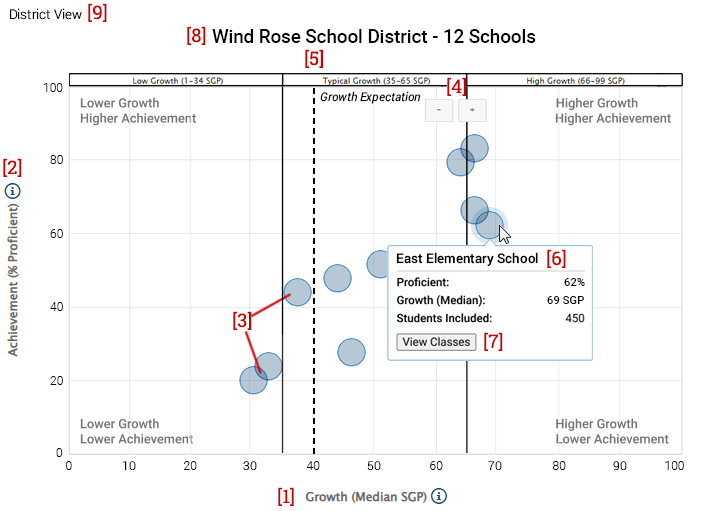

Anatomy of the Growth Proficiency Chart
 The Growth axis, showing either SGP (for students) or Median SGP (for school groups, schools, and classes); values range from 0 to 100. Select or hover over the circled-i icon for more information.
School groups are a feature of larger school districts, where it is sometimes convenient to have an intermediary level of data between the entire district and individual schools. School groups are set up using Renaissance Analytics—if your district does not use school groups, they will not be shown in the Growth Proficiency Chart. Only district level administrators and district staff have access to school groups in the Growth Proficiency Chart.
 The Proficiency axis, showing either Scaled Scores (for students when State benchmarks are selected) or % Proficient (in all other cases). % Proficient values range from 0 to 100; Scaled Score values will vary based on the type of assessment chosen. Select or hover over the circled-i icon for more information.
 The blue circles represent different things based on the level of data you are viewing:
|Level of Data
|Each Blue Circle  Represents
|One school in the district
|One school in the school group
|One class in the school
|One student in the class
Note that the circles can overlap. Use the zoom controls  to zoom in and out on the chart. While zoomed in, select and drag within the chart to move the view around. After one of these controls is used, a Reset Zoom button will appear that you can use to reset the zoom to the default level.

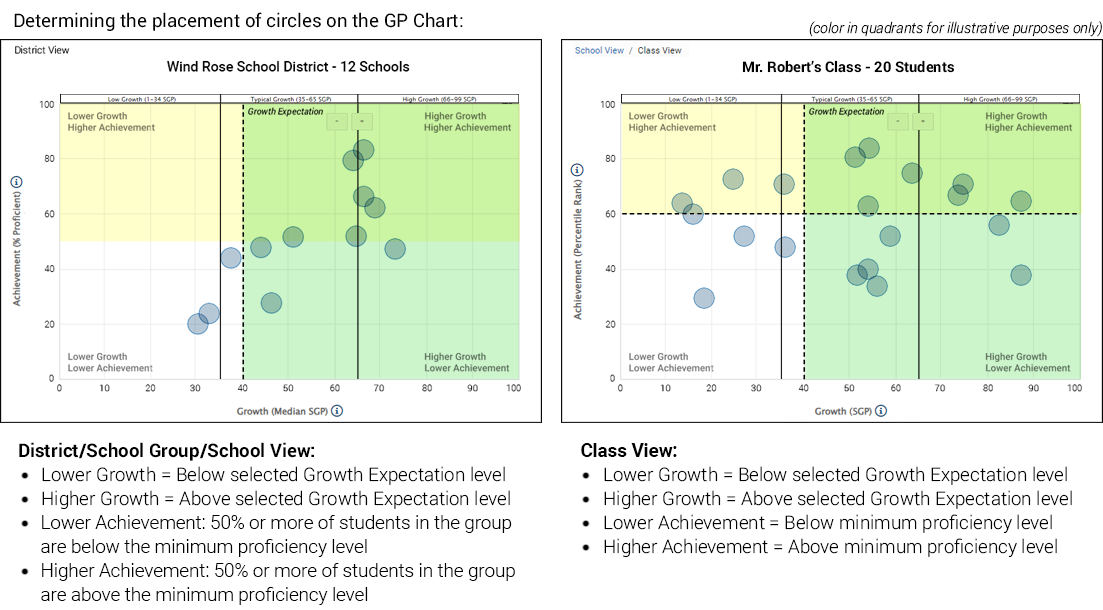

 The vertical dashed line represents the growth expectation level you set (an SGP).
When viewing class-level data, a horizontal dashed line represents the minimum proficiency level (when viewing district- or school-level data, the horizontal dashed line will not appear).
- For state benchmarks, it represents the Scaled Score students need in order to reach the minimum proficiency level.
- For district or school benchmarks, it represents the Percentile Rank chosen by the district or school administrator as the minimum proficiency level.
For classes that have students in mixed grades, the horizontal line is drawn based on the grade with the greatest number of students in the class.
 When you hover over a circle, it is highlighted and a pop-up window opens with data for the school, class, or student represented by that circle. If it is possible to "drill down" to additional layers of data, a button will appear in the pop-up window  which you can use to get down to the next level.
 The name of the district, school, or class you are viewing is shown here, along with the number of items in the next-lower "level" of the hierarchy:
|Level of Data
|Title  Shows
|The name of the district and the number of schools in the district
|The name of the school group and the number of schools in the group
|The name of the school and the number of classes in the school
|The name of the class and the number of students in the class

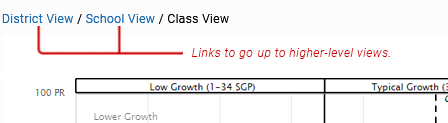

 This heading shows you what "level" of data you are looking at and also provides links so you can easily go up to a higher level. For example, if you are a district administrator or district staff member who has drilled down to the class-level view, this heading might read:
The information in the chart is also presented in a table underneath it, which can be exported as a PDF or CSV file.
Using the Growth Proficiency Chart

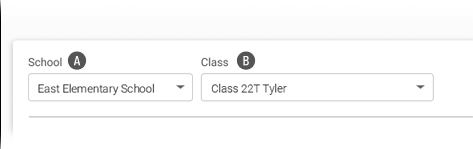

- Use the School and Class drop-down lists at the top of the page to choose which data will appear in the initial view of the Growth Proficiency Chart.
District level administrators and district staff members in districts using school groups will have an additional drop-down list, School Group, which they can use to select a specific school group instead of going down to the school and class level.
Open a text-only (screen reader accessible) version of this image in a new window

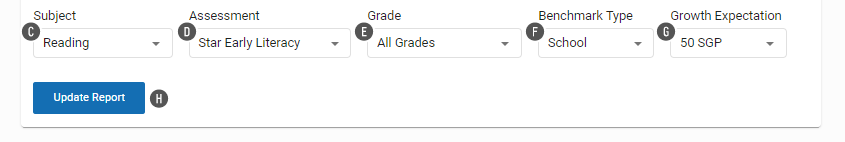

- Use the additional drop-down lists to narrow down the information shown in the chart.
Subject and Assessment : These determine the type of assessment data used to populate the chart; the selection you make in the Subject list determines what options are available in the Assessment list:
Subject Chosen Assessments Available Reading Star Early Literacy
Math Star Math Math Spanish Star Math Spanish Reading Spanish Star Early Literacy Spanish
Star Reading Spanish
Subjects and/or assessments will not be included in the drop-down lists if the selected school or class does not use them.
When an assessment is chosen, the Growth Proficiency Chart uses the latest assessment of that type and works backwards to find an SGP; therefore, the SGP may differ from the one shown on the Star Growth Report.
Grade : Select the grade(s) of the students whose data you want to include in the chart; you can use the links at the bottom of the drop-down list to select/clear all the grades at once. Your user type will have an effect on what your selections mean:
User Type Students Included When You Have Selected All Grades Students Included When Selecting Specific Grades District administrator or district staff All students in all schools or a selected school All students in the chosen grade(s) in all schools or a selected school School administrator or school staff All students in the selected school All students in the chosen grade(s) in the selected school Teachers All of their own students in the selected school All of their own students in the chosen grade(s) in the selected school
Benchmark Type : Select the benchmark you want to measure student performance against: District, School, or State (if the selected assessment type is Star Math or Star Reading).
District administrators and district staff looking at all schools in the district will not be able to select School as the benchmark.
- Growth Expectation : Select the SGP level you want to serve as the minimum level of growth you want students to reach (represented by the vertical dashed line  on the chart).
- Subject and Assessment : These determine the type of assessment data used to populate the chart; the selection you make in the Subject list determines what options are available in the Assessment list:
- Once you have chosen your options, select Update Report . The chart will update based on the options you have chosen; you can choose different options at any time and select Update Report again.
- The blue circles on the chart  represent the schools, classes, or students whose data you are viewing. Hover over a circle to see more detailed information ; use the zoom controls  to zoom the view in and out if necessary. If it is possible to drill down to another level of data, use the button in the pop-up window  to do so; use the breadcrumb trail  to go back up again.

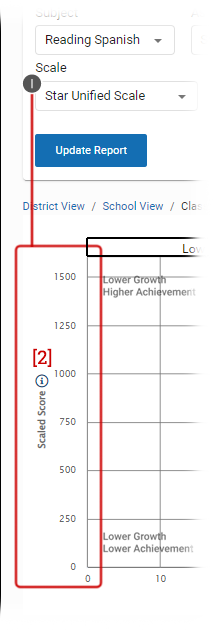

If you are looking at the Class View (where every circle represents one student) and you have chosen State as the benchmark, the values on the Proficiency axis  will change to Scaled Scores. An additional drop-down list, Scale, will appear ; use it to choose which scale you want to use on the axis: Star Enterprise or Star Unified (or Lexile® measure if the selected assessment is Star Reading or Star Reading Spanish).

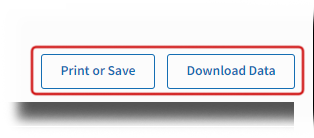

- Select the Print or Save button above the first table in the report to create a PDF of the report. You can also select the Download Data button above the first table in the report to download a CSV (comma-separated values) version of the report that you can open in a spreadsheet program.
